Garmin Approach R50 SportScreen Vanish Series Package

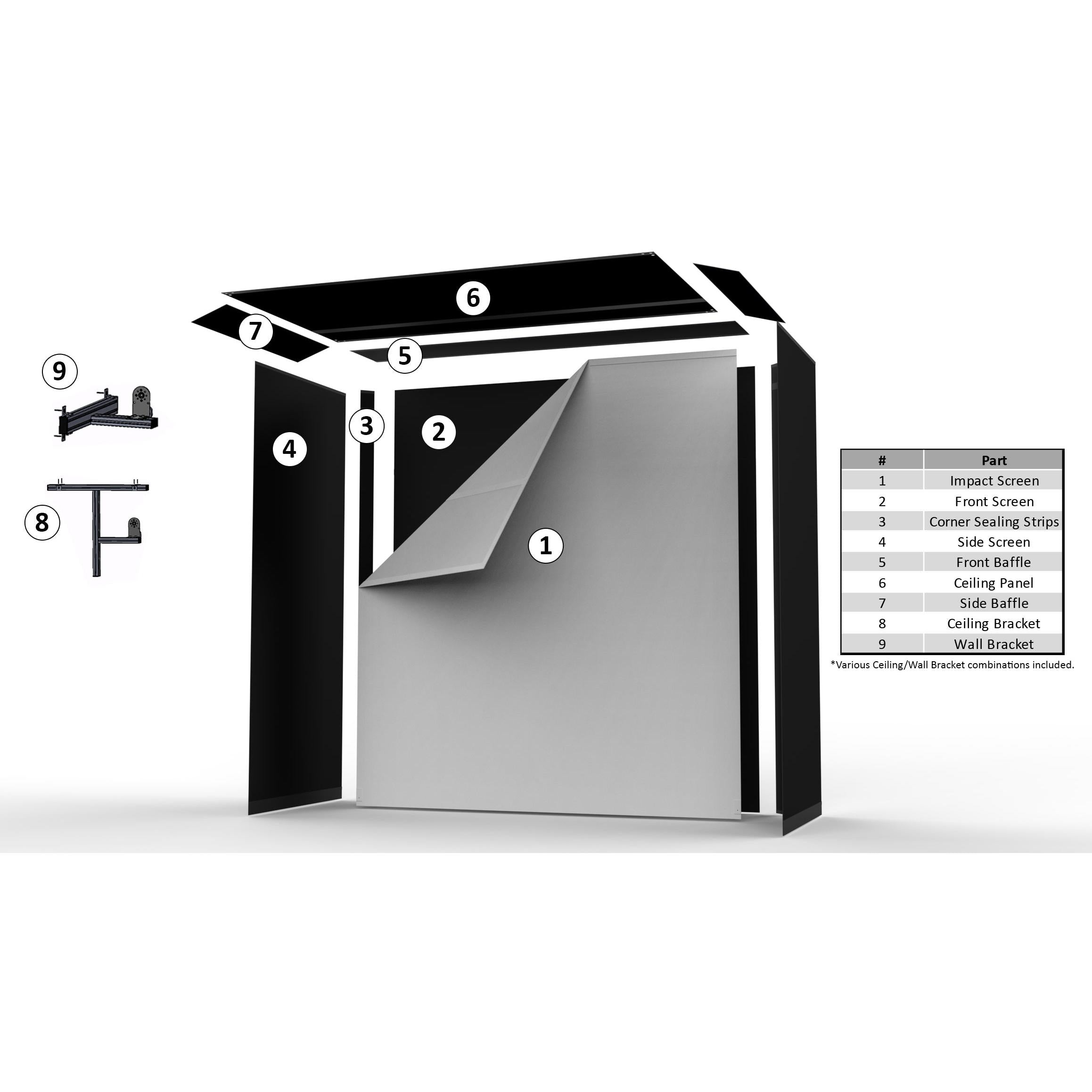

Enclosure:

• 1 rear impact support membrane/ blackout screen
• 2 side screens
• 1 impact screen
• 1 ceiling panel
• 2 corner strips
• 2 side baffles
• 1 front baffle
• Wall/ceiling bracket

Launch Monitor:

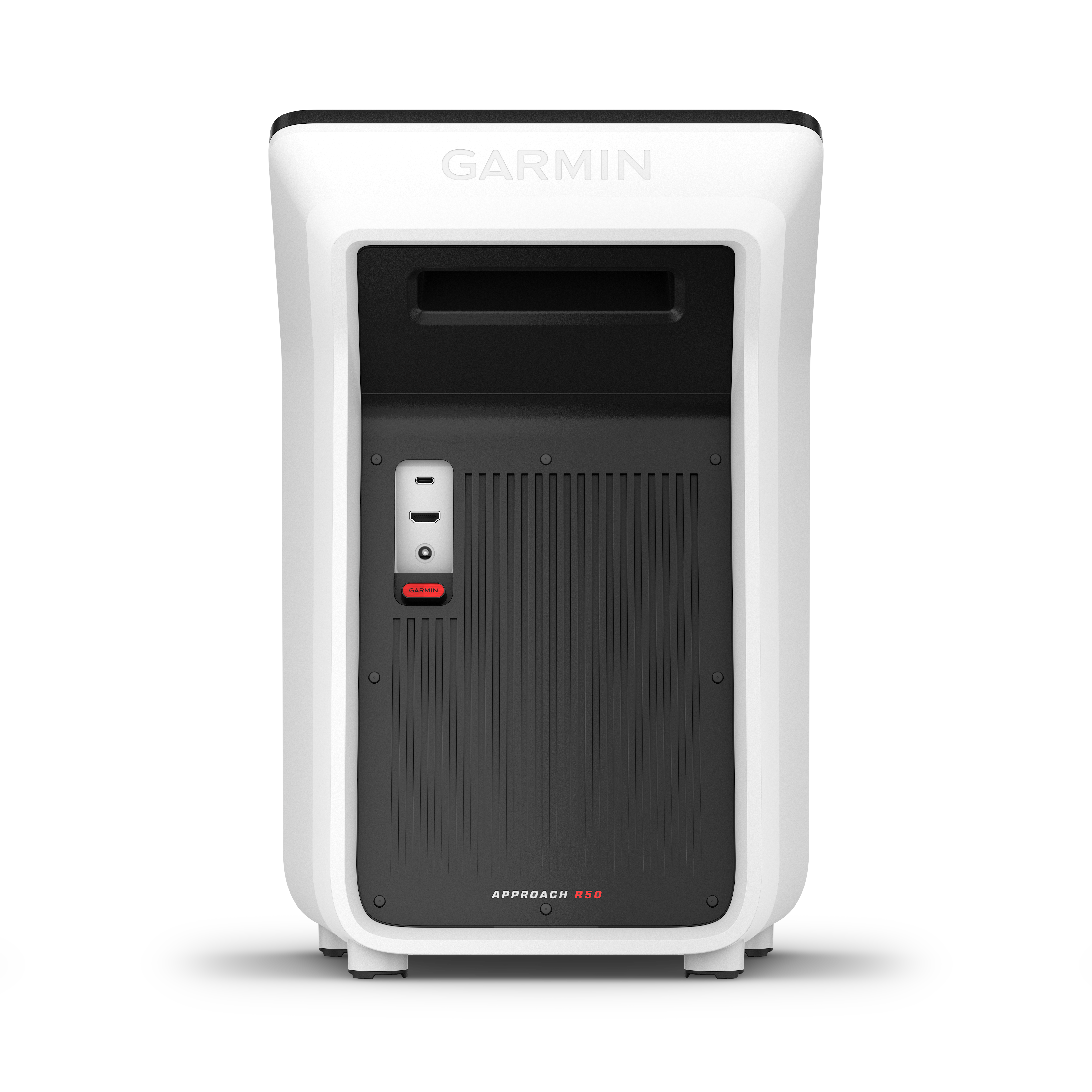

• Garmin Approach R50 premium golf launch monitor and simulator
• Carrying case
• AC adapter and power cord
• 250 club tracking stickers
• Documentation

 computer, turf, hitting mat and projector not included.

• Durability: Patent-protected and sourced from premium suppliers, our construction-grade materials guarantee superior durability, even against high-velocity shots.

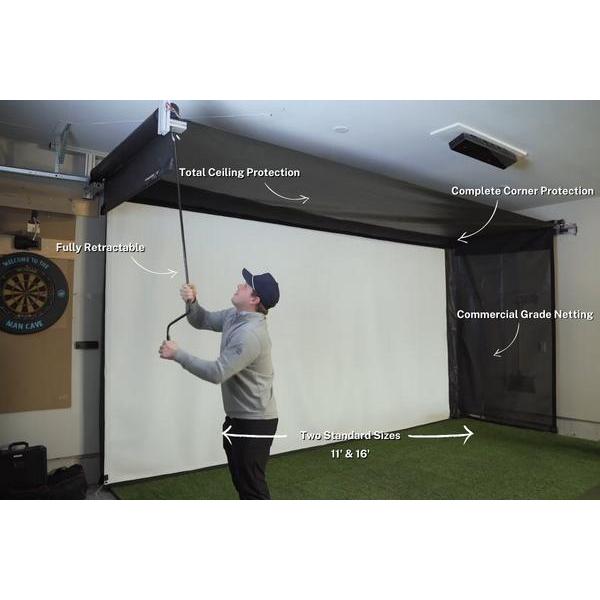

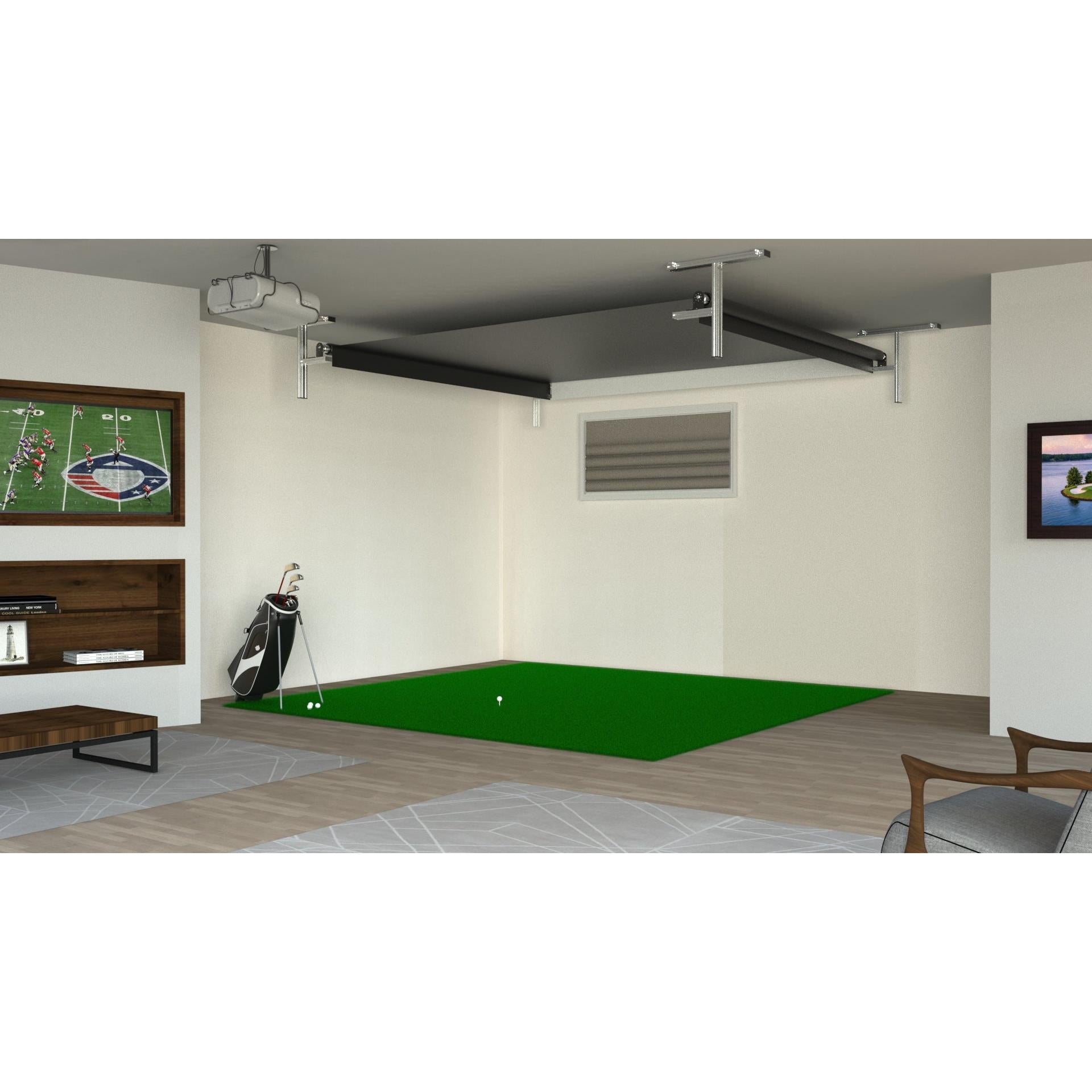

• Rapid Retraction: Rolls up and out of the way in under 5 minutes for space-saving design and easy storage.

• Bracket System: The state-of-the-art, universal brackets allow for flexible mounting options in a variety of spaces.

• Corner Protection: Reinforced with corner protection to protect your space and ensure golf balls stay within the enclosure.

• Get an unmatched simulator experience by connecting to a monitor or projector via HDMI for additional customizable viewing options (not required because of the 10" viewing screen on the launch monitor.

• Play virtual rounds — including putting — with up to four players on more than 43,000 courses through the Home Tee Hero (active Garmin Golf™ membership required); participate in a weekly tournament with scores posted to our global leaderboard — all viewable from the Approach® R50 display

• Tap into insights, select courses, review impact videos, or play a virtual round (subscription required) straight from the 10” built-in color touchscreen display

How far off the wall do Vanish Studio screens mount?

• Vanish Studios sit 8 – 12 inches off the wall in order to protect the surfaces behind it

What are the room space requirements to install the Vanish Series?

Can I mount the Vanish Studio to any surface?

• The brackets that are supplied with Vanish Studios are universal; they can be mounted either by the wall or ceiling. To ensure the screen functions properly, please allow for 8”-12” of clearance from the back of the screen to what you are looking to protect.

• Vanish Studios can be mounted to ceilings that are between 62” and 115”,   if you have taller ceilings, 2 ft screen extensions are available to accommodate for additional height.

 How do I get power to the Vanish Studios?

• Vanish Studios have a power cord on both sides of the screens. You can drill through your space to the closest standard 110W power outlets. If power is not available there are hand crank retractable options.

I have no power source available where I plan to mount my Vanish Studio. What can I do?

• Manual, hand crank roll up options are available for Vanish Studios if power is not readily available. The hand crank versions come equipped with a handle crank system that conveniently rolls out of the way.

The Vanish 11 front screens have the following dimensions:

• Unit width bracket to bracket (128.50 inches)
• Screen Width (124.00 inches)
• Screen height (138.00 inches)

The Vanish 11 side screens have the following dimensions:

• Unit width bracket to bracket (74.25 inches)
• Screen width (60.00 inches)
• Screen height (138.00 inches)

The Vanish 16 have the following dimensions:

• Unit width bracket to bracket (191.50 inches)
• Screen width (187.00 inches)
• Screen height (138.00 inches)

The Vanish 16 side screens have the following dimensions:

• Unit width bracket to bracket (74.25 inches)
• Screen width (60.00 inches)
• Screen height (138.00 inches)

The Vanish 16H have the following dimensions:

• Unit width bracket to bracket (191.5 inches)
• Screen width (187.00 inches)
• Screen height (138.00 inches)

The Vanish 16H side screens have the following dimensions:

• Unit width bracket to bracket (74.25 inches)
• Screen width (60 inches)
• Screen height (138 inches)

All dimensions provided are the total measurements not mounting measurements.
